Beschrijving
Productdescription

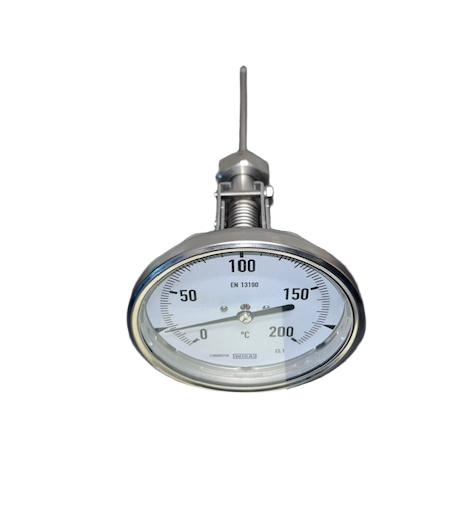

The model S5421 thermometer is engineered for direct installation into pipes, vessels, and various types of plant machinery. Constructed entirely from stainless steel, both the case and sheath ensure durability and resistance to corrosion. To accommodate diverse industrial processes, these thermometers are available with a wide range of installation lengths and process connection types, allowing for flexible and precise fitting. A key advantage of this series is its robust design for demanding environments; featuring a high IP65 protection rating against dust and water ingress, combined with liquid damping, these instruments provide stable and reliable readings even when subjected to significant vibration.
Productspecifications
Model type | Model S5412 |
Material case and ring | Stainless Steel (1.4301) |
Material stem and process connection | Stainless steel (1.4571) |
Productname | Bimetallic thermometer |
Brand | WIKA |
Category | Instrumentation/Thermometers |
Display range | 0-200°C |
Permissible operating pressure | 25 bar |
Originally from | Netherlands |
Switching elements | Single wire switching contact |
Process connection | Process connection: G 3/4 female thread |
Diving stem diameter | 6 mm |
Protection class | IP43 per IEC/EN 60529 |
Insertion length | 186 mm |
Moninal size (NS) | 100 |
Version | Back mount, adjustable stem and dial |
