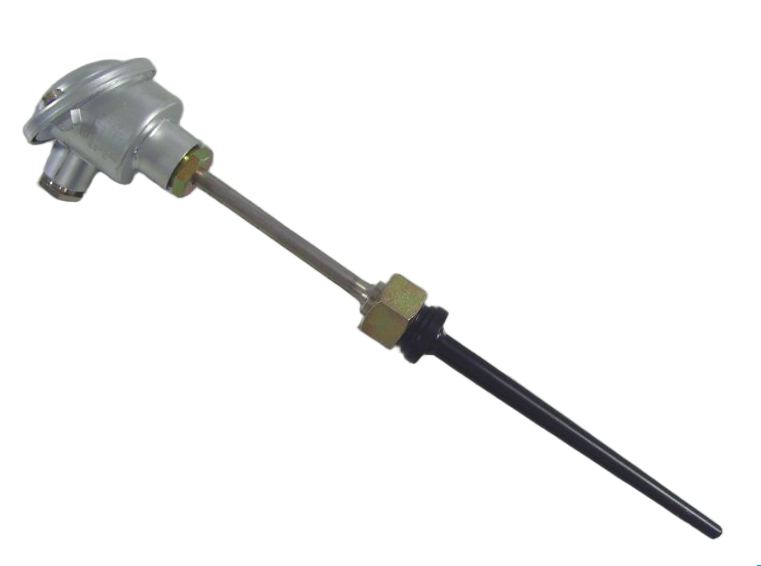

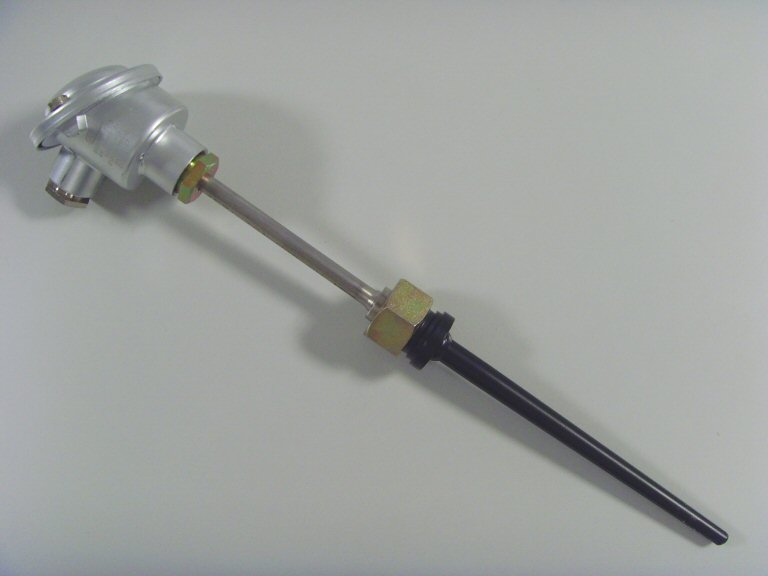

Jumo Resistance thermometer 00055919 PT-100 element 190mm

Artikelnummer: 00055919 Categorie:

Beschrijving

Product description

The JUMO RTD Temperature Probe, represented by part number 00055919, is a high-reliability sensor engineered for critical process control and safety applications. At its core is a precision Pt100 platinum resistance element (Class B, according to DIN EN 60751), ensuring stable and accurate temperature measurement. Its most important feature is its design and testing according to DIN EN 14597, which certifies it for use in combination with safety temperature limiters (STB) and monitors (STW), such as the JUMO safetyM series. Constructed for industrial durability, this probe features a robust stainless steel protection tube (material no. 1.4571) that offers excellent resistance to corrosion and mechanical stress in media like water and oil. It is designed to operate reliably across a wide temperature range, typically from -170 °C to +500 °C, and can handle pressures up to 35 bar. With a standard screw-in process connection (G 1/2″) and a Form B terminal head, it provides a dependable and essential solution for safeguarding heat transmission plants and other critical thermal systems.

Product specifications

Model type

PT-100 00055919

Material

Stainless steel

Productname

Resistance thermometer

Brand

Jumo GmbH & Co. KG

Category

Instrumentation/Thermometers

Terminal head

Form B

Temperature

-170 to +500°C

Originally from

Germany

Process connection

Screw connection G 1/2

Connecting cable

Covered in stainless steel with 0.35 mm² and bend protection

Approvals

DIN 4754, DIN EN 14597 (DIN 3440)

Protection tube

Stainless steel 1.4571, steel St. 35.8, welding shoulder steel 15Mo3

Diameter

10 mm

Documents

Technical data RTD Temperature Probe
