Beschrijving
Productdescription

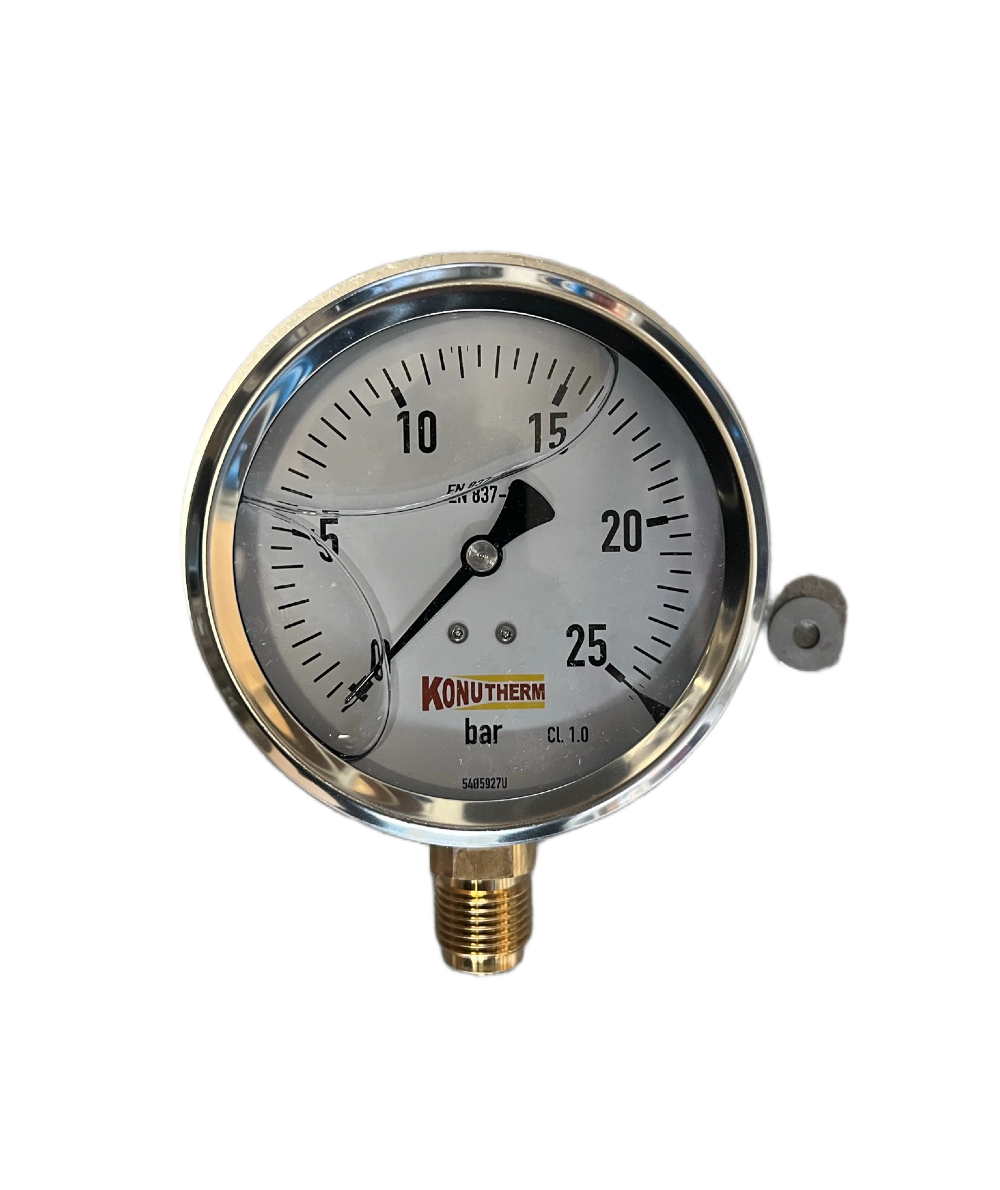

The model 213.53 liquid-filled Bourdon tube pressure gauge features a robust stainless steel case and copper alloy components for parts that come into contact with process media. Compliant with the EN 837-1 international industry standard, this gauge is specifically engineered for accuracy and durability. The liquid filling within the case effectively dampens the internal mechanism, making it ideal for measurement points with high dynamic loads and vibrations, such as those with rapid load cycles. Available in nominal size 100 mm, the housing provides an IP65 ingress protection rating. With an accuracy class of up to 1.0, this pressure gauge is well-suited for a broad range of industrial applications. For panel mounting, these gauges can be equipped with a rear process connection and secured using a mounting flange or a triangular ring and bracket.
Productspecifications
Model type | 213.53.100 |
Functionality | This instrument is designed for measurement points with high dynamic pressure loads and vibrations. It is suitable for gaseous and liquid media that are not highly viscous, do not crystallize, and are not aggressive to copper alloys. Common applications include hydraulics, compressors, and shipbuilding |
Material alloy | Copper |
Material case | Stainless steel (RVS) |
Productname | Manometer |
Brand | WIKA Alexander Wiegand SE & Co. KG |
Category | Instrumentation/Manometers |
Display range | 0 / +25 bar |
Originally from | Netherlands |
Connection | G ½ B, SW 22 |
Protection class | IP 65 (EN 60 529 / lEC 529) |
