Productdescription

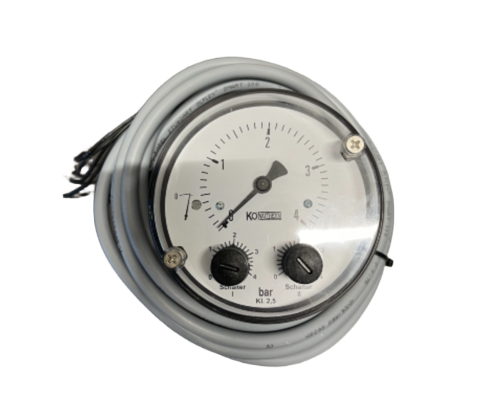

The Fischer MS11 is a robust contact manometer, specifically engineered for reliable pressure measurement and control in demanding industrial environments. This particular model, configured for a range of 0.0 to 4.0 bar with a measuring accuracy of ±0.1 bar, combines precise monitoring with one or two integrated micro-switches for process automation. This is a standard product and is mostly used in Thermal oil systems where the pressure is not as high compared to water/steam systems. But we also deliver MS11 contact manometers up to 25 bar if that suits your request for your particular system ideal for heavy-duty applications. Typical applications include procedural technology, plant engineering, water management, monitoring pneumatic transport systems, and controlling the pumping of drinking water. The versatile MS11 series is also available in a wide variety of other measuring ranges to suit different needs, from 0-250 mbar up to 0-25 bar, as well as various vacuum and compound ranges (e.g., -1 to 0 bar, -1 to +9 bar). This makes the MS11 a highly adaptable solution for precise and durable pressure switching.
Productspecifications
Model type | MS1105NA00B5U092 |
Application | N2 contact pressure gauge located on expansion vat |
Productname | MS11 – Contact Pressure Gauge (for heavy measuring conditions) |
Brand | FISCHER MESS-und Regeltechnik GmbH |
Category | Instrumentation |
Electrical connection | Permanently wired numbered cables, 7-pin plug connection, Cable socket |
Originally from | Germany |
Materials pressure chamber | Aluminium GkAlSi10(mg) |
Materials measuring diaphragm | NBR, Inconel 718, Viton |
Wall mounting | Wall mounting; bottom pressure connection with outer thread G½ B |
Protection class | IP55 or IP65 acc. to EN 60529 depending on model |
Output parameters (switching voltage) | AC 250 V DC 30 V |
Measuring range this product | 0.0 - 4.0 bar |
Max pressure | Up to 25 bar |
Ambeint Temperature | -10°C +70°C |
