Productdescription

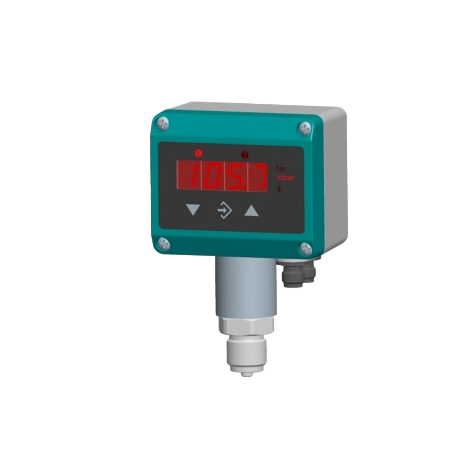

The Fischer MS12 Digital Pressure Switch/Transmitter is a compact, parameter-driven instrument that combines pressure measurement, switching, and transmission in one versatile unit. Featuring a bright LED display with selectable pressure units and measuring ranges from 0-1.6 to 0-60 bar, the MS12 offers exceptional accuracy with linearity <1% FS and hysteresis <0.5% FS. The device provides two independent programmable limit switches with relay or solid-state outputs, plus optional analog signal outputs (0/4-20 mA or 0-10 V DC) with user-programmable scaling and linearization. Advanced features include a 30-point look-up table for signal conversion, password protection, and full PC programmability via optional interface. With its rugged polyamide housing, stainless steel media contact parts, multiple gasket options, and IP65 protection, the MS12 operates reliably from -10 to +70°C, making it ideal for level measurement, pump control, and monitoring applications in challenging industrial environments.
Productspecifications
Model type | MS1207M87PK30MV0 |
Application | Compact pressure switch/transmitter for positive and negative pressure control |
Productname | MS12 Digital pressure switch transmitter |
Brand | FISCHER MESS-und Regeltechnik GmbH |
Category | Instrumentation |
Electrical connection | 3-wire connection, 24 V DC/AC power supply |
Originally from | Germany |
Materials housing | Polyamide PA 6,6 / 1.4305 |
Materials media contact | 1.4305 chrome-nickel-steel, ceramics Al2 O3, Viton® (standard) |
Pipe mounting | Union nut MZ230V of 1.4404 (orientation adjustable) |
Wall mounting | Wall mount with manometer adaptor MZ310V |
Protection class | IP65 according to DIN EN 60529 |
Output signal | 0-20 mA, 4-20 mA, or 0-10 V DC (3-wire) |
Measuring ranges | 0-60 bar (Selection possible) |
Cable Options | Pre-wired numbered cables: 1m, 2.5m or 5m |
Nominal supply voltage | 24 V DC / AC |
Ambeint Temperature | -10°C +70°C |
