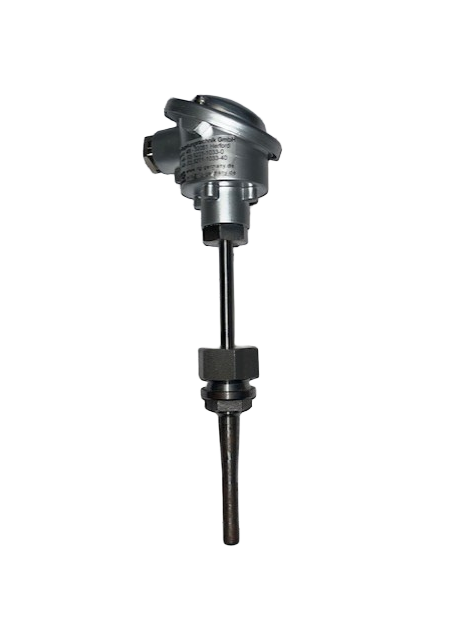

Jumo Resistance thermometer 00055919 PT-100 element insertion length 97mm steel thermowell 75mm

ART ID: 10949

KM-nummer: KM0010-3

Artikelnummer: 00055919-1 Categorie:

Beschrijving

Product description

The JUMO RTD Temperature Probe, represented by part number 00055919, is a high-reliability sensor engineered for critical process control and safety applications. At its core is a precision Pt100 platinum resistance element (Class B, according to DIN EN 60751), ensuring stable and accurate temperature measurement. Its most important feature is its design and testing according to DIN EN 14597, which certifies it for use in combination with safety temperature limiters (STB) and monitors (STW), such as the JUMO safetyM series. Constructed for industrial durability. It is designed to operate reliably across a wide temperature range, typically from -40 °C to +400 °C, and can handle pressures up to 35 bar. With a standard screw-in process connection (G 1/2″) and a Form B terminal head, it provides a dependable and essential solution for safeguarding heat transmission plants and other critical thermal systems.

Product specifications

Model type

PT-100 00055919

Material PT100

Stainless steel

Matrerial thermowell

Steel

Insertion length PT100

97mm

Insertion length thermowell

75mm

Productname

Resistance thermometer

Brand

Jumo GmbH & Co. KG

Category

Instrumentation/Thermometers

Terminal head

Form B

Temperature

-40 to +400°C

Originally from

Germany

Process connection

Screw connection G 1/2

Connecting cable

Covered in stainless steel with 0.35 mm² and bend protection

Approvals

DIN 4754, DIN EN 14597 (DIN 3440)

Protection tube

Stainless steel 1.4571, steel St. 35.8, welding shoulder steel 15Mo3

Documents

Technical data RTD Temperature Probe
