Product description

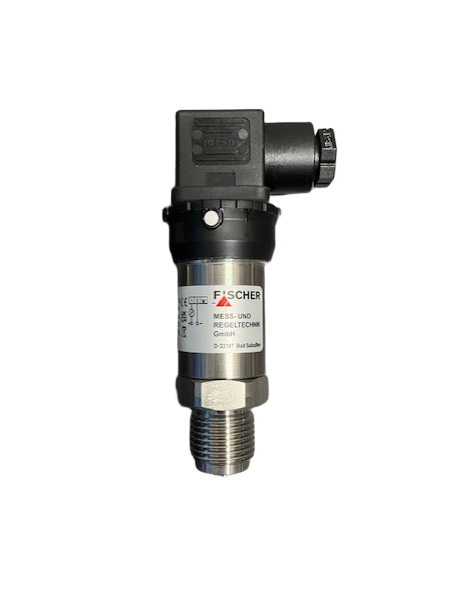

The ME1107M87BH90V00 is a robust and highly precise pressure transmitter ideal for industrial applications such as pump speed control for maintaining constant pressure in systems with non-aggressive liquids and gases. It operates within a measuring range of 0 to 10 bar, offering a measurement accuracy of 1.0% characteristic curve deviation. This model features a G½ B threaded process connection and delivers a standard 2-wire, 4-20 mA DC output signal via a 4-pin DIN plug on a 24V DC supply. Housed in a durable, IP65-rated casing with wetted parts made of CrNi Steel, ceramic, and an FKM (Viton®) seal. Furthermore the ME11 ensures performance in demanding environments.
Product specifications
Model type | ME1107M87BH90V00 |
Material body | Chrome-nickel-steel 1.4305 |
Matrerial contacted by media | Chrome-nickel-steel 1.4305, ceramic: Al2O3, gasket: Viton® |
Power supply | 24 V DC |
Electrical connection | removeable plug (4-pol.), according to DIN EN 175301-803 |
Productname | Pressure transmitter |
Brand | Fischer |
Category | Instrumentation/Transmitters |
Output Signal | 4 - 20 mA 2-wire |
Measuring range | 0 - 10 bar |
Originally from | Germany |
Pressure connection | Male threaded connection G 1/2" B stainless steel |
Protection class | IP 65 according to DIN EN 60 529 |
Precision | Linearity error, gauge pressure 1.0 |
