Product description

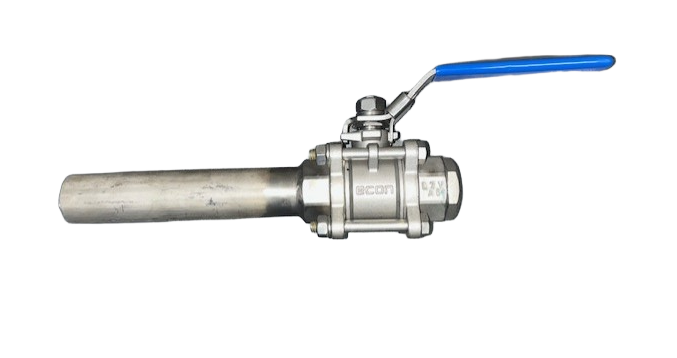

The ECON Ball Valve Type 7446 is a high-performance, 3-piece industrial valve designed for reliability and easy maintenance. Constructed from high-grade 1.4408 stainless steel for both the body and ball, with durable PTFE seals, it offers excellent corrosion resistance for demanding environments. Key features include a 1000 PSI WOG pressure rating and a full bore design that ensures maximum flow with minimal pressure drop. For enhanced operational safety, the valve is equipped with a lockable handle and an anti-static device. This specific model features a handle length (M) of 156 mm, providing ample leverage for smooth quarter-turn operation. With its FDA and EC 1935/2004 compliance and a wide operating temperature range (-29°C to 205°C), this valve is an ideal and safe choice for light industrial processes.
Product specifications
Model type | 7446 |
Control | Handgrip |
Productname | ECON Ball Valve |
Brand | ECON |
Category | Valves & Accessories |
Pressure Rating | 1000 PSI |
Originally from | Netherlands |
Material | Stainless steel (1.4401) |
Min medium temperature | -29 °C |
Max medium temperature | 205 °C |
Max pressure | 63 bar |
D: | 25mm |
L: | 90mm |
H: | 75,5mm |
M: | 156mm |
DN | 1" |
Weight | 1kg |
