Product description

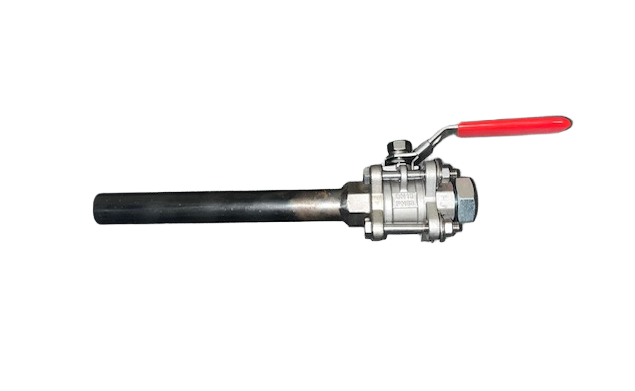

The ECON Type 7646 is a robust, 3-piece stainless steel ball valve designed for permanent, secure installation via welding ends (Socket Weld or Butt Weld). This 1/2″ valve features a 1000 PSI WOG pressure rating and is constructed from high-grade 1.4408 stainless steel with durable PTFE seats, making it suitable for a wide range of industrial applications. Its full bore design ensures unrestricted flow, minimizing pressure drop. Key features include a lockable handle for operational safety, an anti-static device, and a cavity relief hole in the ball to prevent trapped pressure. With an operating temperature range of -29°C to 205°C, it is highly recommended for light industrial processes, including food and beverage applications, as confirmed by its FDA and EC 1935/2004 compliance. The 3-piece body allows for easy in-line maintenance, making the Type 7646 a reliable and serviceable choice for systems requiring a permanent, leak-proof connection. Furthermore the product has a complete length of 160mm.
Product specifications
Model type | 7646 |
Control | Handgrip |
Productname | ECON Ball Valve |
Brand | ECON |
Category | Valves & Accessories |
Pressure Rating | 1000 PSI |
Originally from | Netherlands |
Material | Stainless steel (1.4401) |
Min medium temperature | -29 °C |
Max medium temperature | 205 °C |
Max pressure | 63 bar |
D: | 15mm |
L: | 69,5mm |
H: | 57,5mm |
M: | 100mm |
DN | 1/2" |
Weight | 0.6kg |
