Beschrijving
Product description

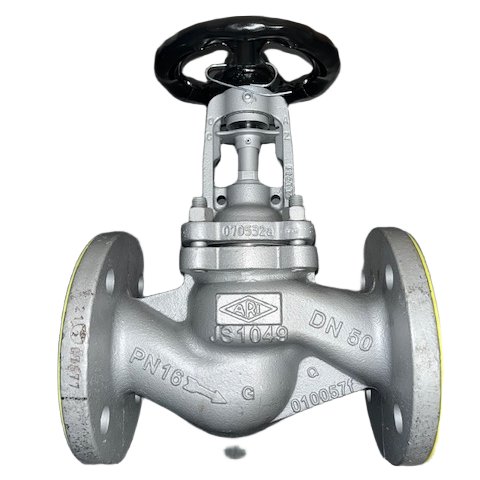

The ARI FABA series, encompassing the FABA-Plus, FABA-Supra, and FABA-LA models, is a line of high-performance, maintenance-free stop valves designed for reliable shut-off and throttling control in demanding industrial systems. The core of its design is a robust, multi-layered stainless steel bellows that forms a hermetic seal, completely isolating the process medium from the atmosphere and guaranteeing zero fugitive emissions. For enhanced operational safety, this primary seal is backed up by a secondary safety stuffing box. The valves are available in various body materials, including cast iron and cast steel, and come in both straight-through and Y-pattern configurations with either flanged or butt-weld ends.
Specifications
Model type | 22.046 |
Control | Handwheel |
Productname | FABA-PLUS |
Brand | ARI Armaturen |
Category | Valves & Accessories |
Size connections | DN15-300 |
Pressure Rating | PN 16 |
Originally from | Germany |
Form | Straight |
Product connections | Flanges |
Disc type | Flat plug |
Material | Cast Iron (EN-JS1049) |
