Productdescription

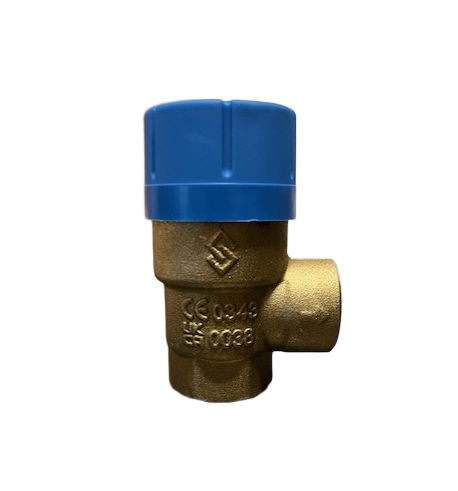

The Flamco Prescor safety valve (article 3651960) is a crucial safety component designed for sealed central heating and water (cooling) installations. This high-quality valve protects systems against excessive pressure by automatically opening when the set pressure of 6 bar is exceeded. It features a 1/2″ DN 15 connection and is constructed from durable, high-quality materials to ensure a high degree of safety and a long operational life. A key feature is its specially designed “pop action,” which provides a large blow-off capacity for rapid pressure reduction.The valve seal is made from high-quality rubber resistant to temperatures up to 140°C preventing it from sticking to the seat.
Productspecifications
Manufactrure number | 3651960 |
Functionality | Designed for sealed central heating and protects excessive pressure |
Productname | Air safety valve |
Brand | Flamco B.V. |
Category | Burner and accessories |
Originally from | Netherlands |
Model | Angled |
Pressure Rating Class Flange | PN 16 |
Housing Material | Brass |
Nominal Diameter Connection 2 | 1/2" (15) |
Blow-off Pressure | 5.6 - 6.2 bar |
Connection 1 and 2 | Female thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1) |
