Beschrijving

Productdescription

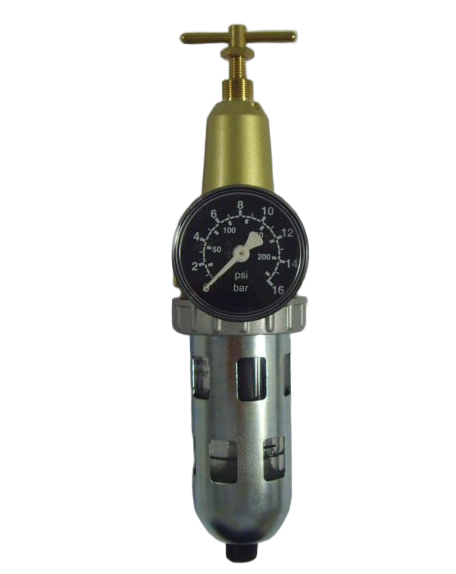

The EWO 324.333S is a space-saving unit that combines a compressed air filter and a pressure regulator. This device ensures a clean and stable air supply, crucial for optimal system performance. It features a diaphragm-type pressure regulator with secondary venting, which helps maintain a constant working pressure regardless of system pressure fluctuations and air consumption. The standard model includes a 40 µm filter, a pressure range of 0.5 to 10 bar, and is operated by a toggle. For condensate removal, manual drain valves are standard, with semi-automatic or fully automatic options available. The included pressure gauge can be mounted on the front or back. Connection threads range from G 1/8 to G 1/2, and mounting can be accomplished with a bracket set. Different pressure control ranges, such as 0.5-3, 6, 10, and 16 bar. The 324.333S will be delivered with a pressure control of 0.5 – 16 bar. It is advisable to adjust your request regarding to which pressure control range suits your installation.
