Beschrijving
Productdescription
The KFM controller type 93KT10c is a specialized and powerful variant within the KFM 93 series, engineered for advanced, application-specific control tasks. Its “K” designation signifies that it is a freely programmable controller, allowing for the implementation of custom logic and sequencing that goes far beyond standard PID control, effectively functioning as a compact PLC. The inclusion of a modern, transmissive color TFT display, indicated by the “T,” provides a superior user interface with clear, multi-value readouts, descriptive texts, and graphical representations of process data. The “10c” hardware configuration points to a focused design with one primary measuring input for a key process variable and multiple changeover relay contacts for precise control outputs. This combination makes the 93KT10c an ideal solution for OEM machinery, complex thermal installations, and automated systems that demand custom logic, enhanced visualization, and reliable, multi-point switching in a single, integrated 96x96mm unit.
Productspecifications
Productname | Digital KFM controller |
Function | Control and regulate industrial processes |
Brand | KFM Reglungstechnik GmbH |
Category | Electrical |
Originally from | Germany |
Model | 93KT10c |
Type (depending on configuration) | Freely programmable |
Measuring inputs | 2x PT100 DIN |

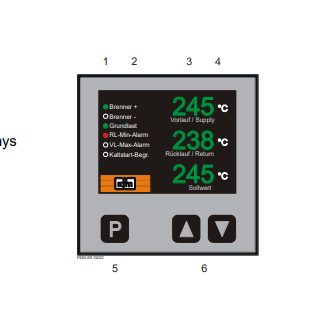

Display | Transmissive color TFT display with descriptive texts |
Protection class | IP54 |
Power supply | 230V |
Output | 6 x Relay outputs (potential-free changeover, 250V 2A) |
